  FEATURES • One loop (AFP-300) or two loops (AFP-400) Style 4, 6 or 7. • 198 intelligent devices per loop (99 intelligent detectors and 99 intelligent modules). • 396 intelligent device capacity on the AFP-400; 198 on the AFP-300. • VIEW®, HARSH™, Advanced Multi-Sensor (AMS) options. • Up to 68 internal circuits/relays, plus 99 programmable zone output relays for a total capacity of 563 points. • Four integral Notification Appliance (signal) Circuits (NACs), Style Z or Y (Class A or B). • 6.0 A power supply, plus 6.0 A expanders. • NACs may be programmed for Steady, March Time, Temporal, California code, or Canadian Two-Stage. • Modified California code, pulsed on time. • Tornado Warning activates different Notification Appliance Circuit code. • Alarm, Trouble, Supervisory, and Security relays, standard. • Peer-to-peer network-ready. • Intelligent features: |
 |
Fire Alarm

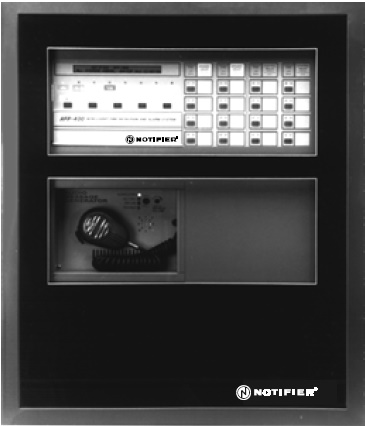

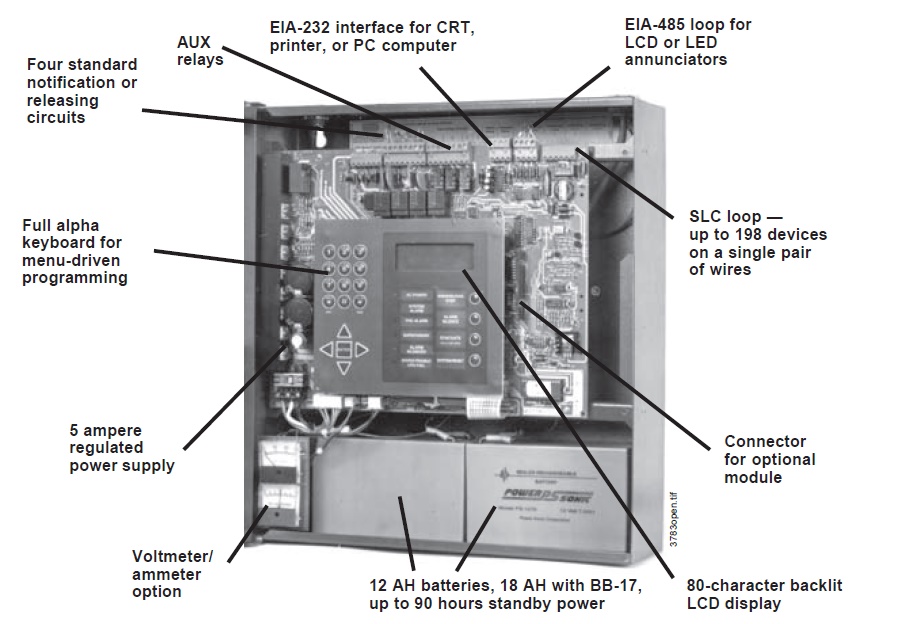

GENERALThe AFP-300 and AFP-400 are compact, cost-effective, intelligent
fire alarm control panels with a total capacity of up
to 563 points and an extensive list of powerful features. The
AFP-300/400 integrates conventional output circuits, such
as notification, telephone, and speakers, with the intelligent
features of one or two signaling line circuits (SLC) and 198
or 396 intelligent/addressable points.
